Condensing the appeal of an ultra-high-end system, this minimal and versatile, best-selling Esoteric system has evolved into the “XE” model, offering even richer musicality. With the Network DAC Preamplifier N-05XE and Class A Power Amplifier S-05XE, all that remains is to choose the perfect speakers for your system.

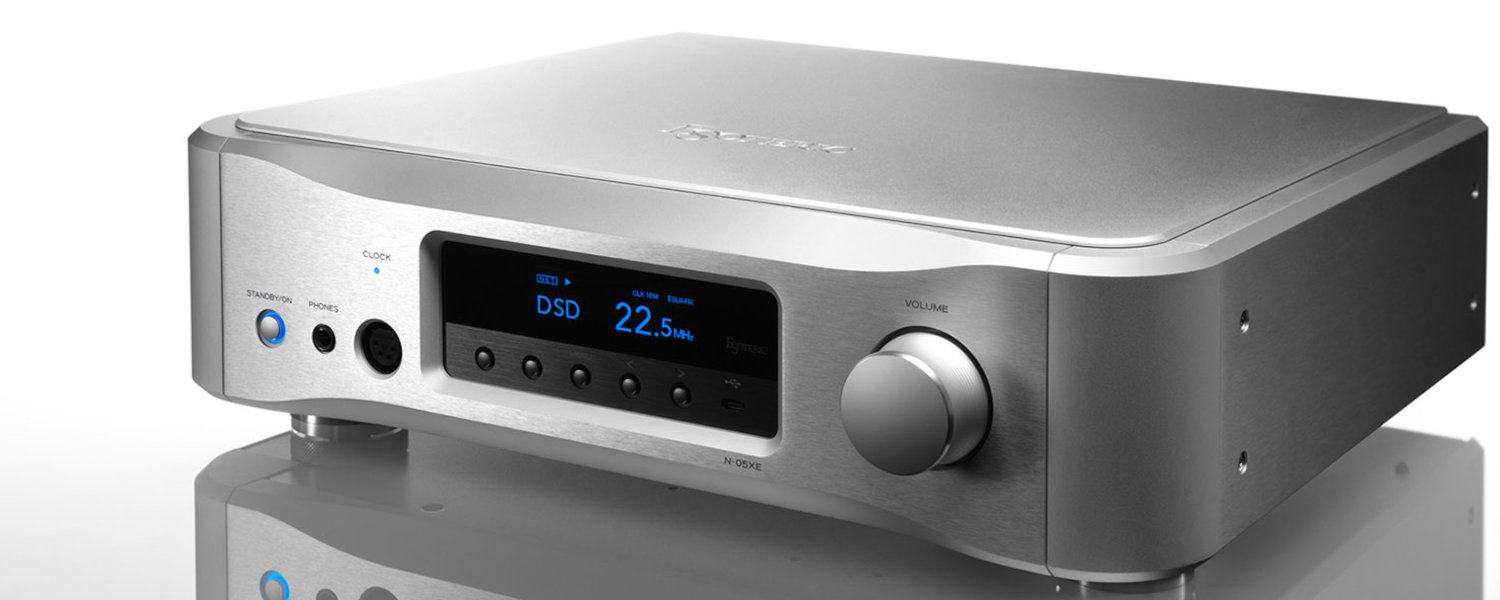

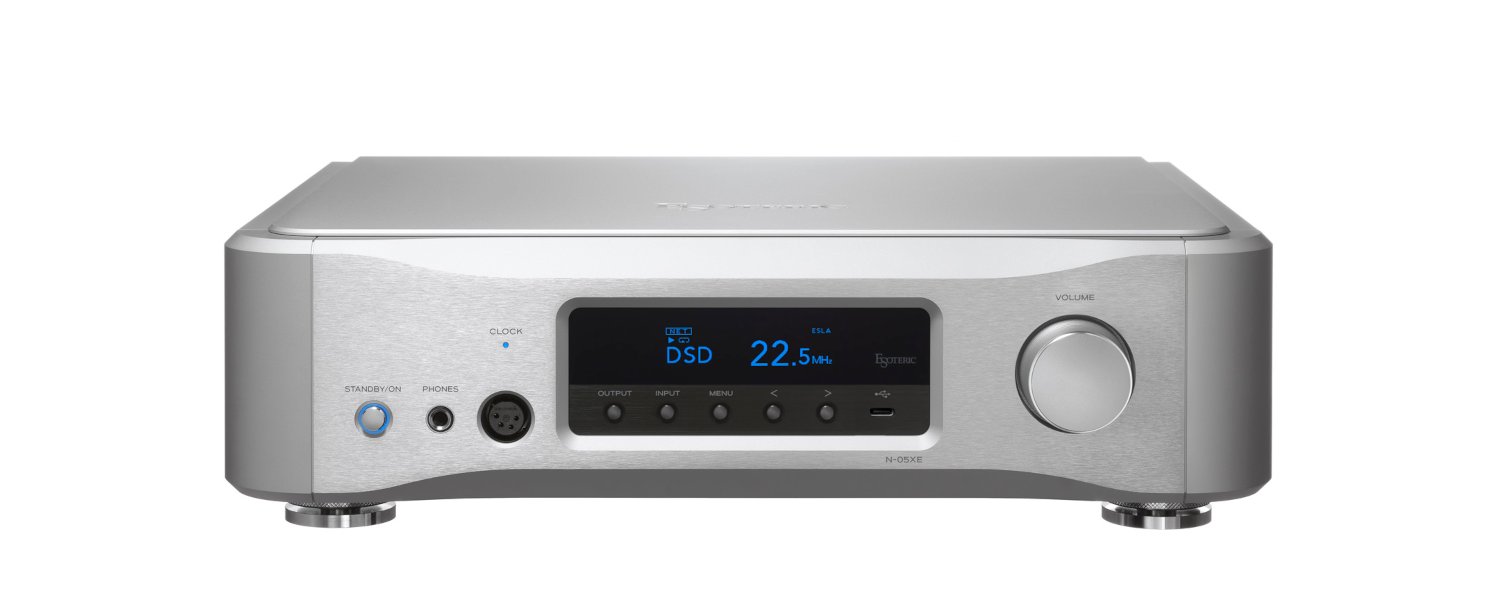

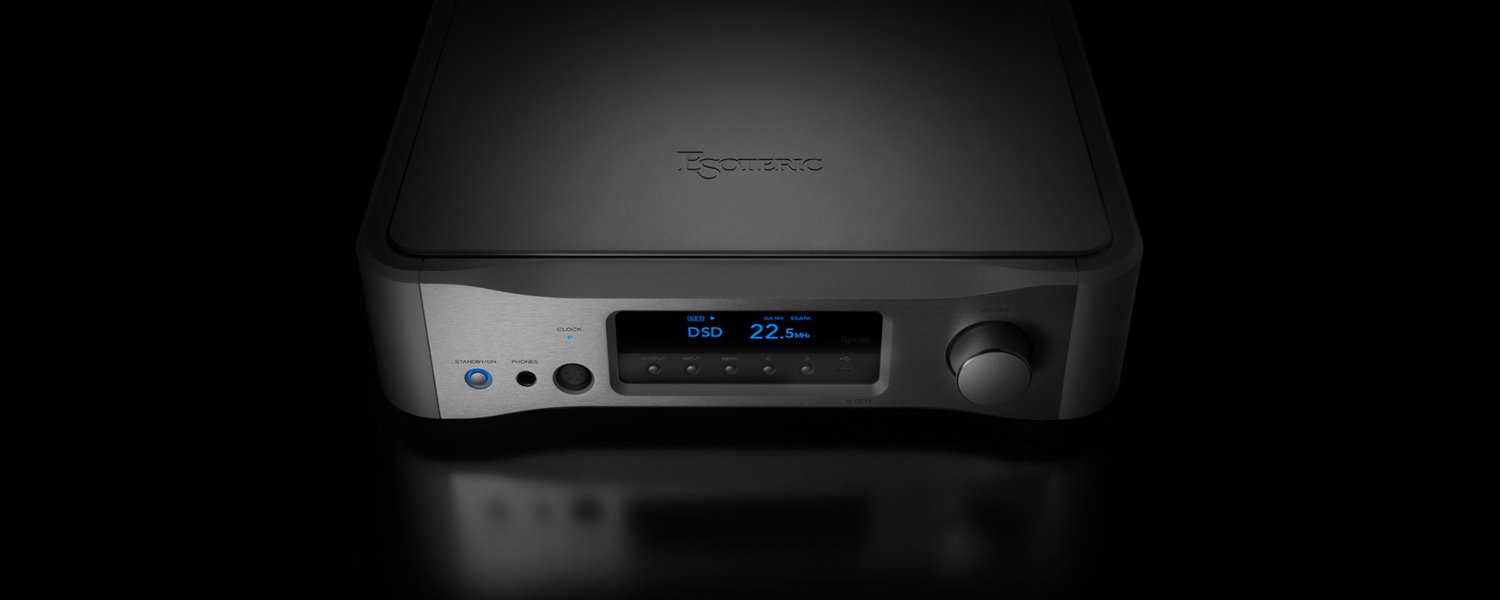

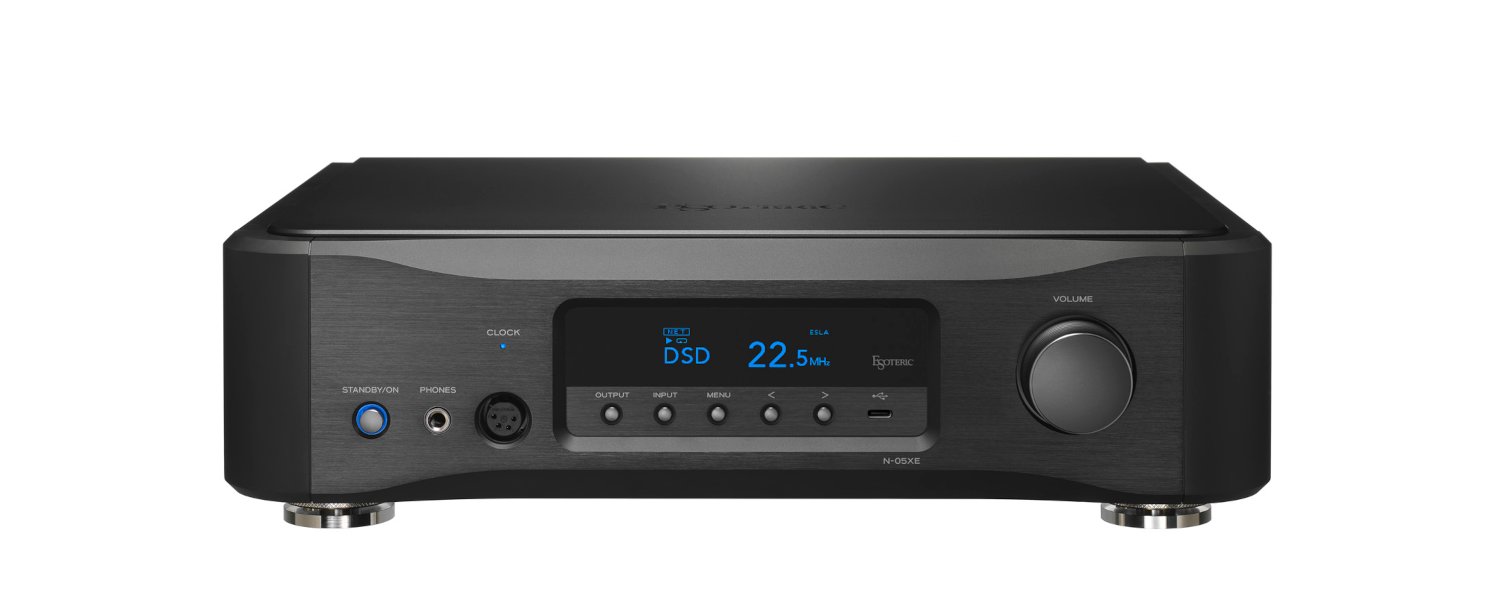

Designed to deliver the highest sound quality in the smallest possible system configuration, the N-05XE features an optical network-compatible G4 network engine and a next-generation G2 discrete DAC. It also has a dual balanced preamplifier derived directly from the Grandioso models along with a high-quality built-in headphone amplifier.

The “XE” model retains its acclaimed functionality while meticulously refining every circuit component through a newly optimized design. Enjoy the refined Esoteric signature sound to your heart’s content.

N-05XE System Configuration
D/A Converter: Equipped with a wide range of digital inputs
Network Streamer: Designed for streaming and music file playback
Dual-Mono, Dual Balanced Preamplifier
Dual-Mono, Parallel Single-Ended Headphone Amplifier
Fully Dual-Mono Construction: All analog and power supply circuits are completely L/R independent

Master Sound Discrete DAC G2
Next Generation “G2” DAC: With richer musicality, incorporating the Grandioso N1 technologies N-05XE
Highly Advanced Multilevel ΔΣ D/A Converter: Powered by 64-bit/512Fs ΔΣ modulator
FPGA-Based Discrete Circuit Configuration: Without using an off-the-shelf DAC IC
Two Independent FPGA Digital Processing Algorithms: Optimized separately for PCM and DSD formats
Low-Noise New Register Network: Provides cleaner imaging and lower noise N-05XE
High Precision MELF Resistor Elements: Ensures ultra-high D to A conversion accuracy
Fully Dual-Mono Configuration: Left/right independent analog and power supply circuits
“Master Sound Discrete Clock for Digital Player”: Esoteric’s proprietary high-precision clock circuit N-05XE

ESOTERIC Network Engine G4
Next Generation Network Streaming Engine: Supports optical network connections via SFP port N-05XE
Dedicated Large Linear Power Supply: Contributes to smooth, vinyl-like, and richly detailed sound
Native DSD 22.5 MHz Playback Support
Music Server Function: Supports connection of up to two USB drives
Wide Range of Supported File Formats: DSF, DSDIFF, FLAC, ALAC, WAV, AIFF, MQA, MP3, AAC
Esoteric Sound Stream App: Provides extremely comfortable operation on smartphone/tablet
OpenHome Compliant: Can be controlled using compatible OpenHome applications
Support for Multiple Streaming Services: Tidal Connect, Qobuz Connect, Roon, Spotify Connect, QQ Music

Dual-Mono, Dual Balanced Preamplifier
High-Fidelity Dual-Mono, Dual Balanced Circuit: Consists of 8 circuits (L/R, hot/cold independent)
Dedicated Attenuator Power Supply: Contributes to pure volume control N-05XE
HCLD High-Current Buffer Amplifier: Powerfully drives downstream equipment with no sound quality difference regardless of preamp output, line output, or headphone output
ES-Link Analog: Esoteric’s proprietary current signal link with amplifier, provides super authentic sound
ES-Link Analog input ×1 N-05XE

Dual-Mono, Parallel Single-Ended Headphone Amplifier
Completely New Circuit Design: Developed for even higher sound quality N-05XE
Dual-Mono Parallel Single-Ended Amplification: Provides excellent drive capability and control N-05XE
1,200 mW + 1,200 mW Output (32 Ω Load)
4-Pin XLR and ¼ (6.3mm) Stereo Phone Headphone Outputs

Other Features
Front USB Type-C Port: Functions as a DAC input for smartphones and DAPs N-05XE
ES-Link (XLR) Input: Provides digital connectivity to Esoteric SACD transport models
10 MHz Clock Input: Enables connection to the G-05 external master clock for further sound quality enhancement
Bluetooth® Receiver: Supports various high definition codecs; LDAC, LHDC, Qualcomm®aptX ™ HD audio, Qualcomm®aptX ™ audio, AAC, SBC
Fixed Line Output Mode / Signal Pass-Through Output Mode
High-Rigidity Chassis Construction: Optimized for effective vibration control
Semi-Floating Top Panel: Enhances sonic openness and spatial expression
Patented Pinpoint Isolation Feet: Deliver focused imaging and an open soundstage
Proudly Made in Tokyo
