ADVANCED DIGITAL CONNECTIVITY
Capable of distributing 16 channels of audio signal over 1 Ethernet connection for Dante applications, 2 connections for AES-EBU applications. The DPR-16 is engineered for future digital connectivity while remaining fully compatible with existing systems.

REDEFINE NETWORK AUDIO PROCESSING
Dante has long been the standard in enterprise-level audio routing, delivering unmatched reliability and performance across complex systems. Now, for the first time, we’re bringing that same proven technology into the home theater space with products designed around the networked audio standards of Dante and AES67 providing powerful new options for immersive home audio experiences.

Inputs
4 x HDMI inputs
1 x Optical IN
1 x Digital coax IN
Dante

Processing
Up to 16 decoding/upmixing Channels
Sampling Rate supported – 24 bit/192k
HDMI – 2.1
HDCP 2.3

HDR support
Max Resolution – 4K 120 hz/8k 60 Hz
Max Bandwidth – 48 gbps
Dolby Atmos
DTS:X

HDMI Connectivity
HDMI 2.1/HDCP 2.3
48 gbps on all ports
HDR10+, Dolby Vision, HLG, VRR
ARC/eARC – available on main output

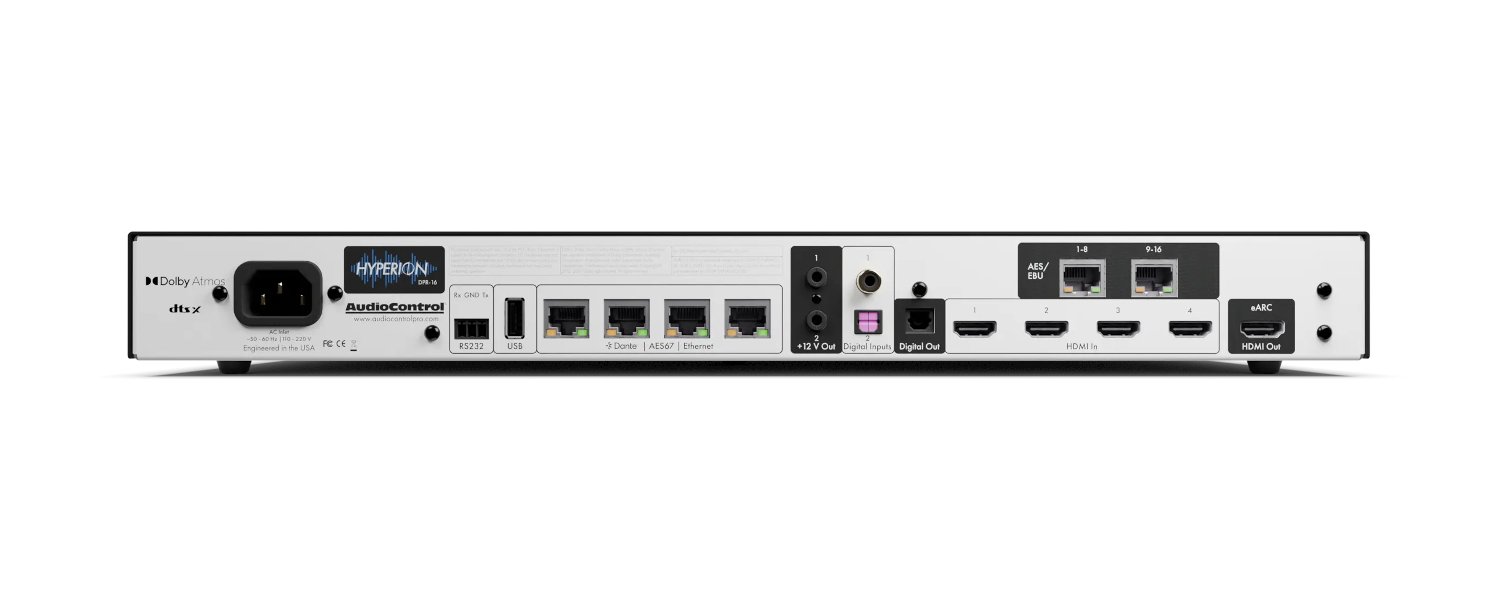

Outputs
1 x HDMI Out (eARC)
1 x Optical Out
2 x RJ45 – 16 channels AES-EBU
1 x RJ45 – 16 Chs Dante/AES6

Control Inputs/Outputs
1 x RS-232 Serial Control
2 x RJ45s – TCP/IP Ethernet
5-12v trigger In/Out
5-12v trigger In/Out
RS-232
Cloud based FW updates via Web interface
USB-A for FW updates/maintenance

Power
100-240v (universal power supply)

Dimensions (no rack ears or feet)
L-17.75(43.18 cm) x W- 17.25(43.815 cm) x H-1.75 (4.45 cm) 1U

Weight
8 lbs (3.6 kg)

Manufacturer: Hyperion supplier Scotland
