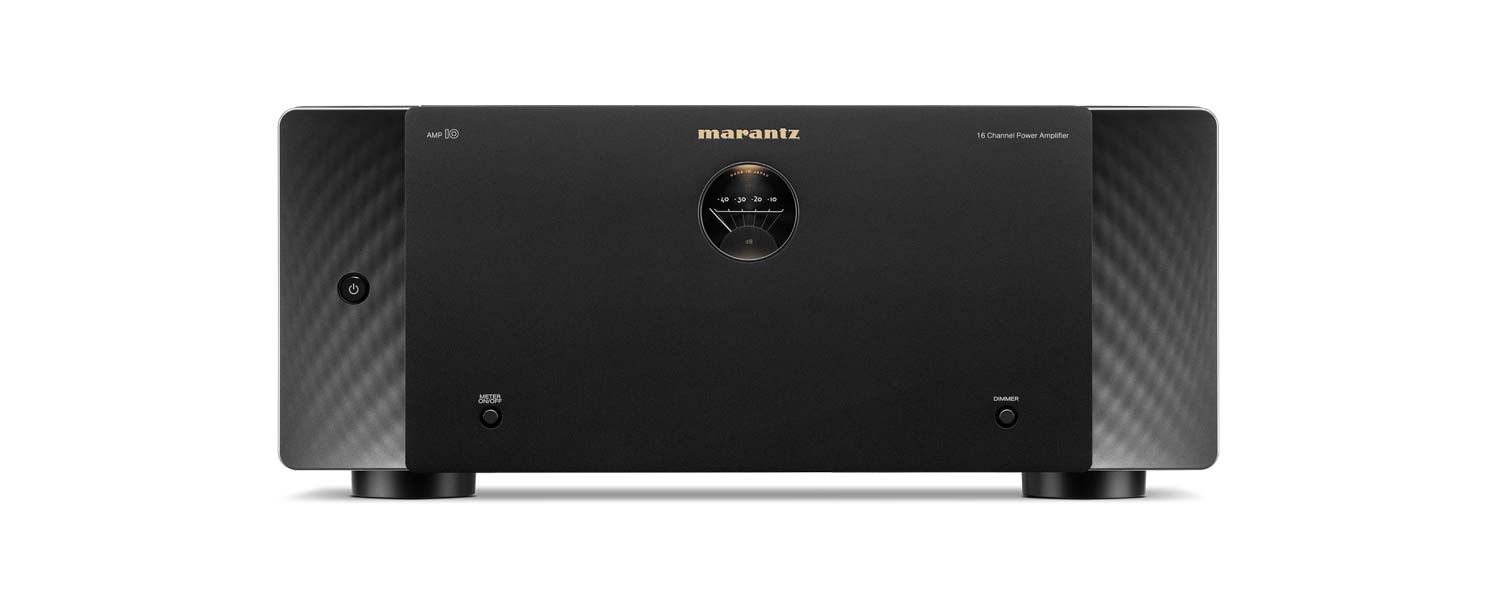

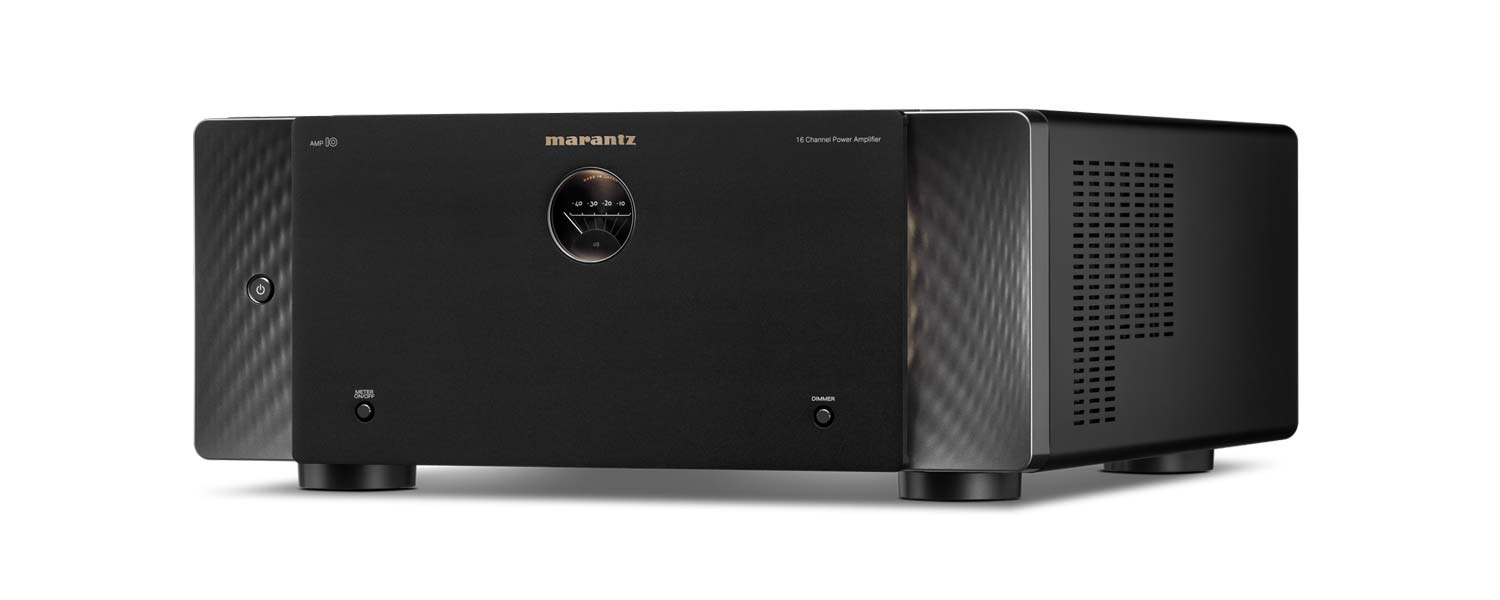

Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theatre. Marantz HDAM, Current Feedback Amplification, and balanced line level input.

• Crafted in Shirakawa, Japan
• 16 Channels
• 200 Watts per Channel
• Custom HDAM
• Custom Switching Amplifiers
• Selectable Output Modes

Multi-Room CI

• IP Control / RS232 Control / Web Control / App Control:  No / Yes / No / No
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Input/ Output: 1 / 1
• Others: Front Display: Level Meter
• Firmware Update by Network / USB / RS232C: No / No / No
• Auto Power off: Yes

Inputs Outputs

• Main Amplifier in: Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
• Speaker Terminal: SPKT-1+
• Number of Speaker Terminals: 16
• Bi-Amp Drive /BTL Drive: Yes / Yes
• Level Meter: Yes
• Chasis: Copper Plated

Specifications

• Number of poweramps: 16
• Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL: 200W / 400W
• Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal: 400W
• Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal: 200W
• 70% Guarantee(Normal/Bi-Amp/BTL): Yes
• 100% Guarantee(Normal/Bi-Amp): Yes

General

• Metal Front Panel: Yes
• Pre-Programmed / Learnable / LCD Display: No / No / No
• Power Consumption in W: 500
• Power Consumption No-Sound (ECO on/off) in W: No / 140W
• Standby Consumption in W: 0.2
• Maximum Dimensions:(W x D x H) in mm: 17.4 x 19.2 x 7.4
• Weight in lbs: 43.7
• What’s in the box: Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench

Manufacturer: Marantz supplier Scotland
