The Meridian DSP9 open weekend.

We will have the Meridian DSP9 on show over the weekend 9/10 November. If you would like to hear a different approach to hi-fi contact us for timings

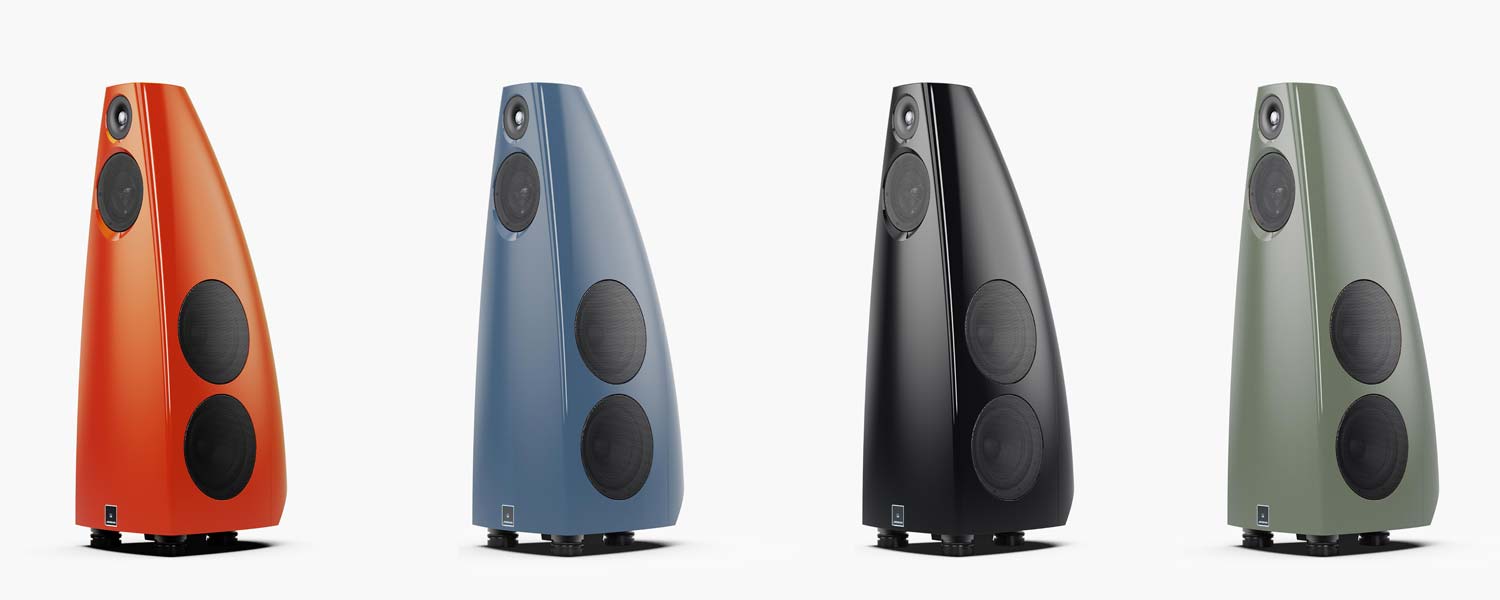

DSP9 is the latest product to emerge from Meridian’s groundbreaking Extreme Engineering Programme; a result of years of investment and research at the extreme edge of audio design. The unique and fundamental Programme has been built around Meridian’s approach to delivering authentic, natural and lifelike sound and results in a level of performance never previously achieved on a loudspeaker of this size.

Advanced engineering was used to create the striking sculptured exterior lines and sophisticated three-dimensional spaces within the cabinet to enhance its performance. The DSP9 also features Meridian’s Precision Sonic Transport which uses innovative techniques and processes to ensure the entire journey taken by an audio signal through a product maintains maximum sonic fidelity, so that the listener is immersed in authentic and realistic sound.

INPUT CONNECTIVITY
1 x Meridian SpeakerLink connector [RJ45]
1 x co-axial digital audio [RCA phono] supporting up to 192kHz @ 24-bit
1 x optical digital audio [Toslink] supporting up to 96kHz @ 24-bit
1 x USB digital audio [type C] supporting up to 384kHz @ 24-bit
Bluetooth via the Meridian B-Link [supplied]
1 x balanced analogue audio [XLR] on analogue input module
1 x unbalanced analogue audio [RCA phono] on analogue input module

OUTPUT CONNECTIVITY
1 x Meridian SpeakerLink connector (RJ45)

CONTROL OPTIONS WITHOUT ANALOGUE INPUT MODULE
Meridian comms via SpeakerLink
Bluetooth via Meridian B-Link module [supplied] and the Meridian Control app
Integrated IR receiver
External IR receiver connection
RS232 via SpeakerLink input
USB via Maintenance connection

CONTROL OPTIONS WITH ANALOGUE INPUT MODULE
Automatic signal-sense detect. Switch on detect time less than three seconds; switch to standby timeout approximately 20 minutes
Trigger input on analogue input module [3.5mm minijack]

PERFORMANCE
Peak SPL: 119dB@1m for a single loudspeaker
Frequency response in room within 3dB: 20Hz – 40kHz

TWEETER AMPLIFIER
Class AB, capable of greater than 150W into 4Ω, < 1% THD
THD + noise @ 1kHz < 0.005% Bandwidth >100KHz

MID-RANGE AMPLIFIER
Class AB, capable of greater than 150W into 4Ω, < 1% THD
THD + noise @ 1kHz < 0.005% Bandwidth >100KHz

BASS AMPLIFIERS
Four bridged pairs of Class-D amplifiers – each pair capable of greater than 240W into 4Ω, < 1% THD
THD + noise @ 1kHz < 0.008%

TWEETER
25mm beryllium dome with silver voice-coil, steel custom waveguide

MID-RANGE DRIVER
1 x 160mm with non-conductive voice-coil former and anti-resonance clamp-ring mounting system

BASS DRIVERS
4 x 200mm polypropylene long-throw [up to 24mm excursion] with anti-resonance clamp-ring mounting system

FRONT-PANEL INDICATOR
Blue in Standby, White in use [can also be unlit in use]

REAR-PANEL CONTROLS
Power On/Off, channel selector switch, input sensitivity switch [on analogue input module]

DIMENSIONS / WEIGHT
WIDTH: 392mm [15.43in ] tapering to 158mm [6.2in]
DEPTH: 511mm [20.1in] tapering to 187mm [7.4in]
HEIGHT*: 1101mm [43.5in]*With feet/spikes fitted
WEIGHT: 68kg [149.9lbs]
