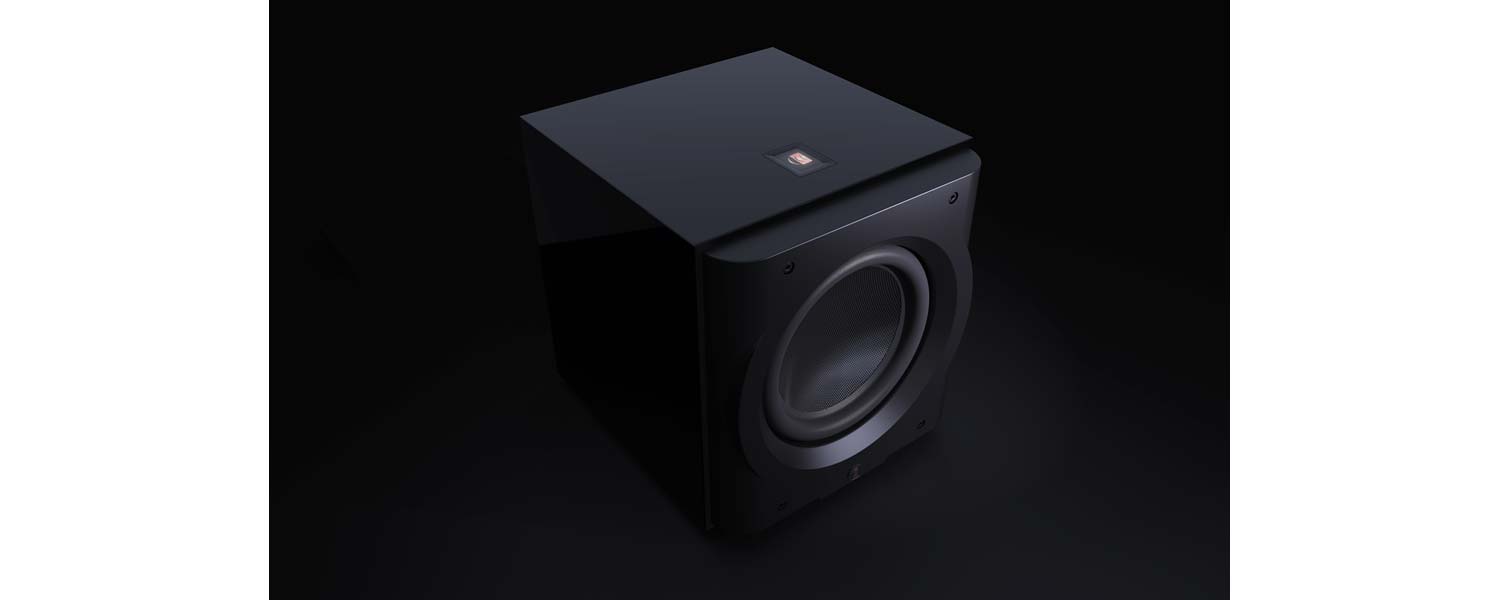

MODEL D15s Subwoofer: Small footprint, big sound. Benefiting from many of the technologies of our flagship subs, these sealed subs generate amazing performance in the smallest footprint. Low Q, shallow rolloff response geared for sound quality and smoothly integrating into the listening room. Also, a great choice for using multiple subs to optimize in room response and smooth out seat-to-seat variation. The D15s is the smallest single sub certified THX Dominus available on earth. Powerd by our 2.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam. Ground up drivers developed by our team of engineers. Carbon fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of Klippel laser measurements to dial things in. All D-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.

The D15s is the smallest single THX Dominus certified sub available. Proprietary 2.0kW amplifier controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor. Carbon fibre composite diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coils. 2.4” LCD touchscreen display and Perlisten App control.

Alignment: Acoustic suspension
Amplifier: 2.0kW RMS short term
Display Interface: 2.4” LCD colour touchscreen
App: iOS and Android
Processor: 32-bit ARM Cortex M4, double precision floating point
math
DSP Engine: Ti DSP 48-bit data paths
Driver compliment: 380mm, Carbon fibre diaphragm +/-30mm linear
excursion
Reference sensitivity: 92dB / 150mV/ 1.0m
Frequency Response: THX EQ 20-320Hz (-6dB) / 16-395Hz (-10dB);
Boost (Large Room) EQ 16-320Hz (-6dB) / 14-395Hz (-10dB); Cut
(Small Room) EQ 24-320Hz (-6dB) / 18-395Hz (-10dB)
Inputs: (2) Balanced XLR; (2) Unbalanced RCA
Outputs: (2) Balanced XLR unbuffered; (2) Unbalanced RCA
unbuffered
Parametric EQ: 10-Band PEQ with 3 user presets
Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase: Variable 0-270°
Polarity: Normal / inverted
Configurable Auto turn-on and 12V Trigger: XLR 1, XLR 1+2, RCA 1,
RCA 1+2
Dimensions (HxWxD): 528 x 500 x 500mm
Weight: 46.0 kg
Certification: THX Dominus

Manufacturer: Perlisten Supplier Scotland
