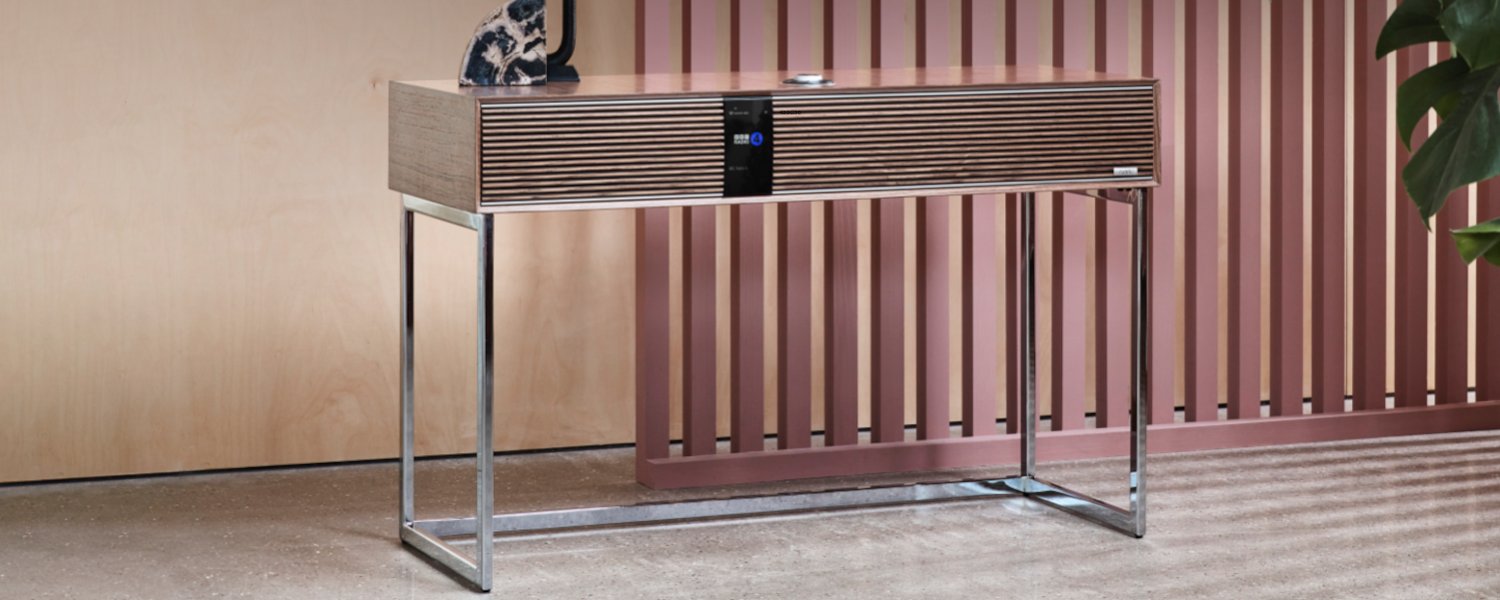

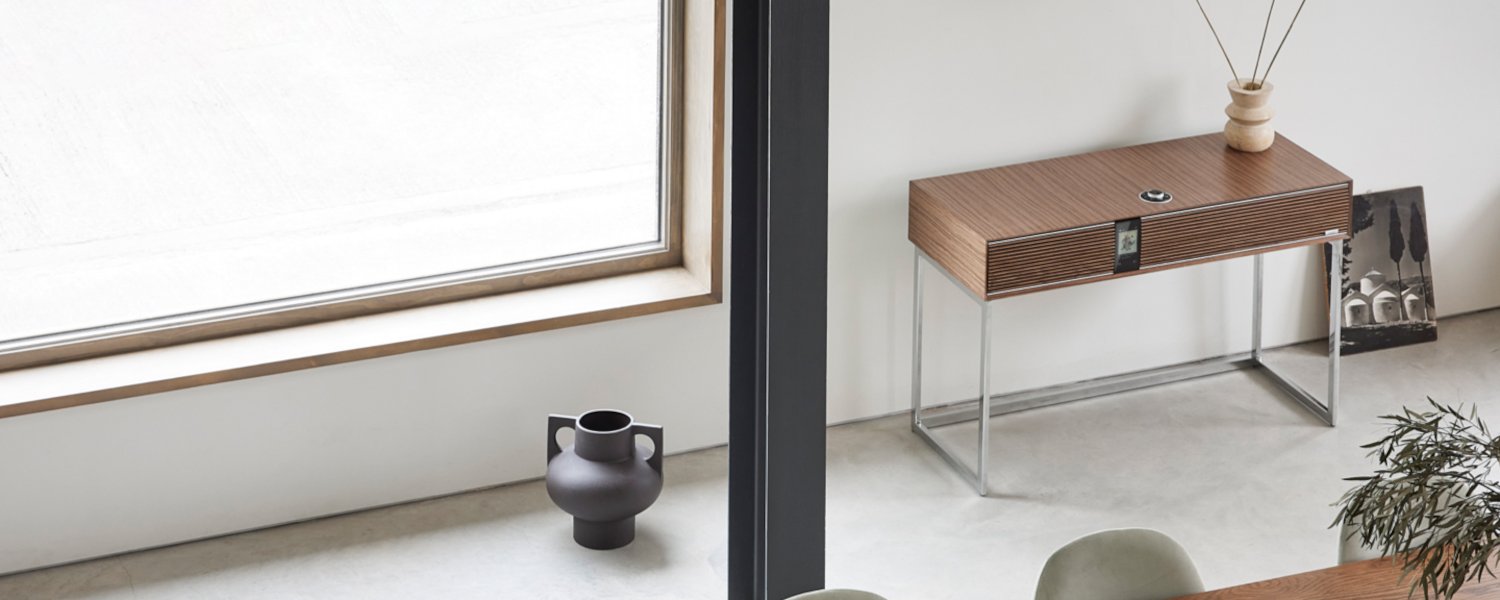

Like the iconic radiograms of yesteryear, R810 is a product that has been designed to be seen. Enhancing R810’s aesthetics is the special material we’ve selected for the handcrafted grille and veneered cabinets. Made from sustainable woods that are spliced and reconstituted, the resulting grain patterns closely resemble slow-growing hardwoods but without the ecological impact. Combined with the precision formed trims and polished chrome stand, R810 radiates sophistication and like the finest furniture, it is an object that you will cherish and be proud to have on display in your home.

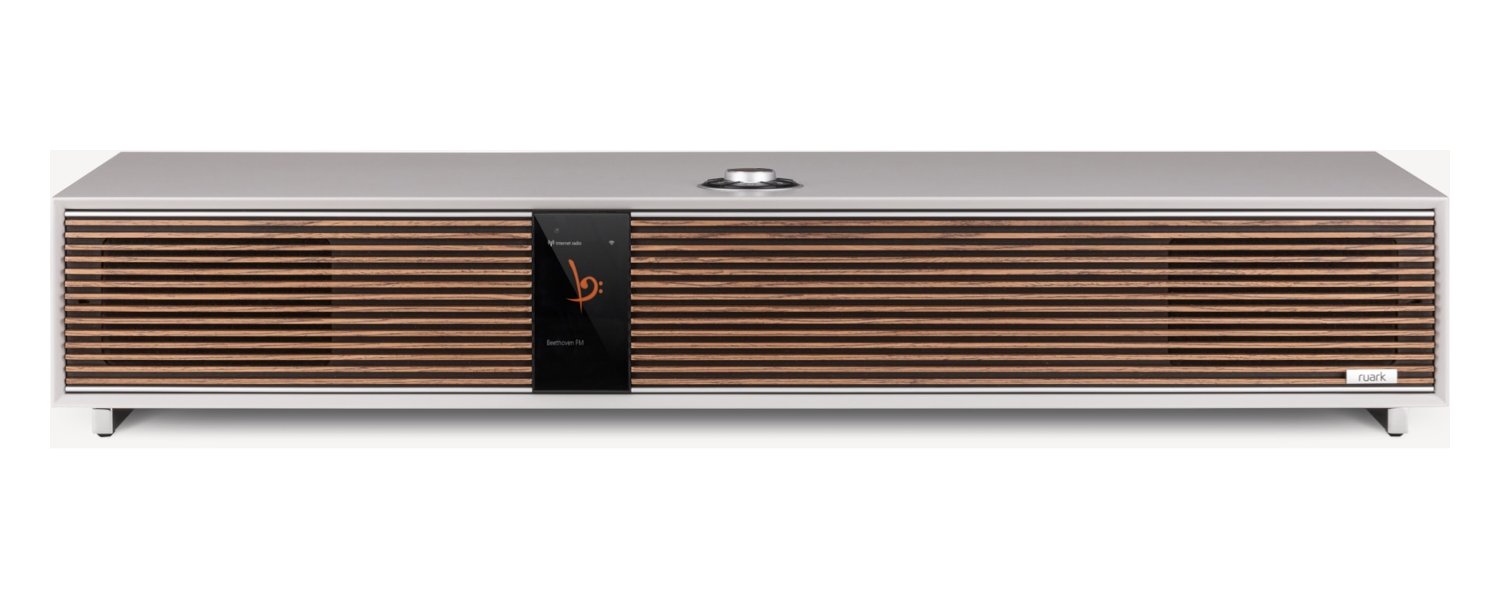

Many systems today rely totally on smartphones and suchlike to provide information on settings and source, but with R810 the hi-resolution display provides all the information you need right in front of you and brings the look of R810 to life. With its portrait orientation the display intentionally emulates the way we view music applications on our phones and in conjunction with our new RotoDial controller makes R810 second nature to use. The intensity of the display in standby and active mode is also fully adjustable to suit your needs.

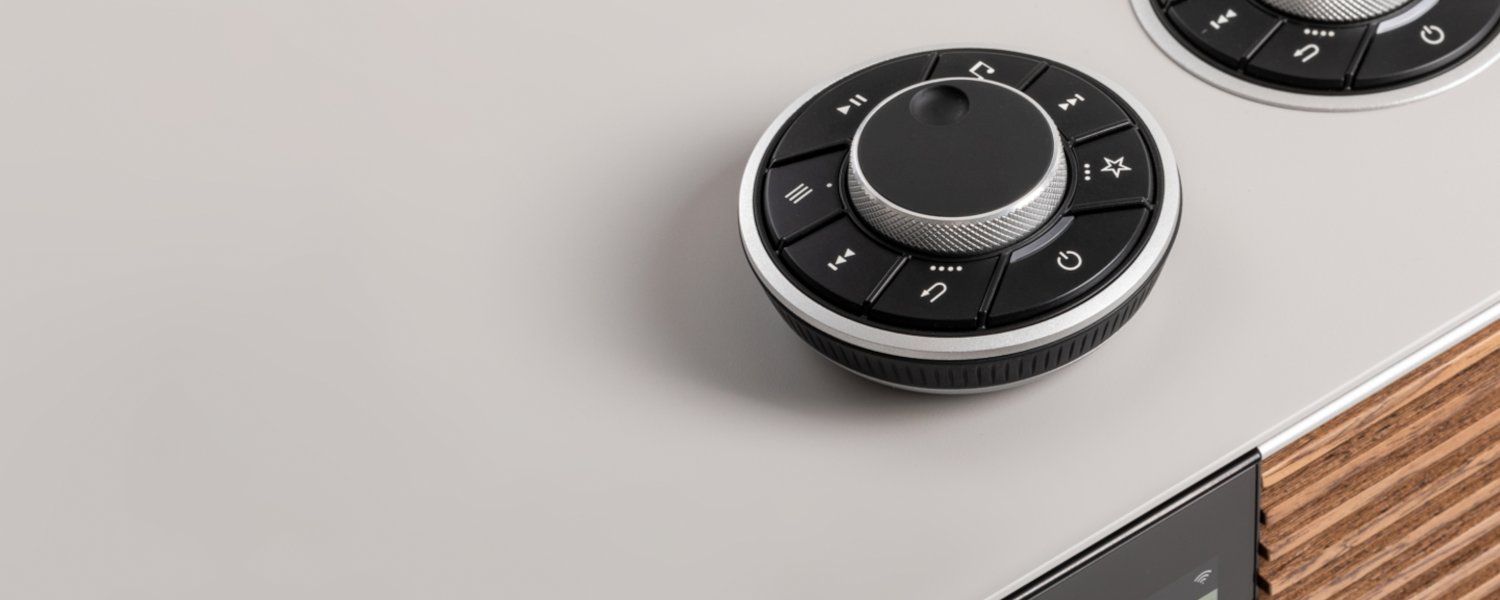

With touch-screens seemingly controlling everything these days, in our opinion you still can’t beat the positive click of a button or satisfying turn of a dial, particularly when it comes packaged as something unique and beautiful like our RotoDial control system, which for 100 Series has been improved and enhanced.

Included with R810 is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required during operation and looking so good, it’s an item that you will want to leave out on display for everyone to touch and see.

We’re passionate about aesthetic design, but we know that it’s what lies beneath that is fundamental in creating great sound. An example of this is R810’s enclosure where inside it has been carefully divided into compartments, each which have been optimised for their intended task. Twin bass reflex compartments house our NS+ bass-midrange units and silk dome tweeters and the long throw subwoofer is housed beneath, in an infinite baffle enclosure for superbly controlled and extended bass.

Driving the system is a powerful five channel Class A-B discrete component amplifier. Five separate channels means that we can precisely control the response of each drive unit and with the latest sound processing technologies, music is produced with effortless ease with a stunning soundstage that will immerse you and fill your home with exquisite sound.

R810 is a fully integrated entertainment system and provides all the connectivity you are ever likely to need. Streaming is its forte, but if you want to play LPs or CDs, these can easily be enjoyed by connecting a turntable to the dedicated phono inputs or our R-CD100 CD player to the USB-C socket on the rear panel.

With its ability to play the highest quality audio streams, R810 opens a whole world of music and entertainment. Spotify Connect, TIDAL Connect and Qobuz Connect are built-in and with the addition of Apple AirPlay and Google Cast compatible devices, including R410 and R610.

• Frequency response: 30Hz – 22kHz
• Speaker units:
  2 × Ruark 27mm silk dome tweeters,
  2 × Ruark 100mm NS+ bass-mid units,
  1 × Ruark 200mm long throw subwoofer
• Amplifier: 180W RMS Discrete 5-channel Class A-B
• Enhancements: Adjustable treble, bass and sub settings,
• Stereo+ audio enhancement,
• Adaptive EQ provides ideal sound according to volume
• Cabinet type: Tuned reflex stereo enclosures and sealed subwoofer enclosure
• Controller: Ruark RotoDial control system
• Remote Control: RotoDial BT LE rechargeable remote
• Display: Hi-Res 4″ colour TFT
• Presets: 20 Global presets
• App Control: Via Spotify, BBC Sounds and more
• Auto-Standby: Adjustable power saving mode
• Adjustable Input Levels: Line-in and optical
• USB Charge Port: USB-C 5V 1A (5W)
• Software Updates: Over-the-air and USB
• User Interface Languages: Multilingual
• Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
• Multiroom capable: Via Apple AirPlay and Google Cast
• Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
• Streaming: Apple AirPlay and Google Cast
• Built-in music services: Spotify Connect, TIDAL Connect and Qobuz Connect
• Supported music services: Amazon Music, BBC Sounds, Deezer and many more
• Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
• Ethernet: RJ45 connector 10/100 Mbps to DLNA: UPnP™ DLNA media server compatible
• CD support: CD playback via optional R-CD100 CD player
• HDMI: ARC and eARC
• Line-input: Stereo RCA input (up to 2.3Vrms)
• Turntable input: Stereo RCA input with RIAA MM phono gain stage
• Optical input: TOSLINK digital input up to 24-bit 96KHz
• USB-C: playback port
• Aerial Connector :75Ω F-type
• Supported Audio Formats
  FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz
  MP3: up to 48kHz 320kbps
  AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps
• Standard finishes: Fused Walnut Veneer or Soft Grey Lacquer
• Product dimensions:
  H152 × W1000 × D400mm (cabinet)
  H650 × W1000 × D435mm (inc. stand, dial and mains connector)
• Product weight: 27kg (30.7kg inc. stand)
• Product power input: 100-240VAC, 50-60Hz, 2.5A
• Power consumption: <2W standby. 10W idle
