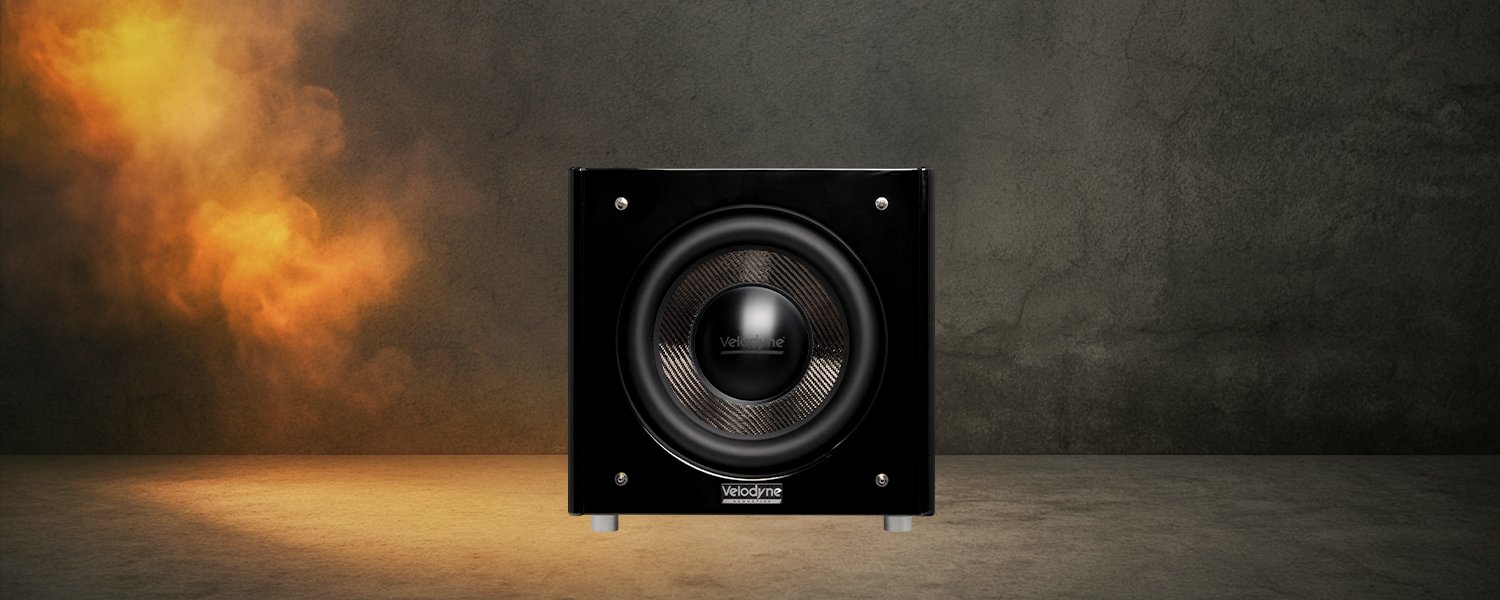

The subwoofer flagship from Velodyne Acoustics
The SPL-X subwoofer always provides the decisive low-frequency foundation in the system – and is immediately ready for use thanks to numerous presets. Thanks to XLR and RCA as well as high-level inputs, the SPL-X can be seamlessly integrated into any audio environment. Whether in the studio, home theater or living room: you can rely on the bass of the SPL-X series.

With the SPL-X series, Velodyne Acoustics redefines the subwoofer flagship and continues on the path of SPL Ultra and the legendary DD series
The high-end subwoofer series combines pioneering DSP technology, a powerful Class D power amplifier and carbon drivers with a fully parametric 6-band EQ. The automatic room calibration ensures linear, rich bass in every room and avoids distortion.

The SPL-X subwoofers deliver pure performance right down into the frequency range – with up to 1800 watts RMS and massive 4-inch voice coils on the larger models. The flagship drivers with dual-spider suspension and vented baskets guarantee maximum control, even at extreme levels. The volume, crossover frequency, phase and EQ can be conveniently controlled from the listening position via the free app.

The features:

• Powerful Class D amplifiers with up to 1800 W RMS for precise bass reproduction
• Heavy-duty carbon drivers with 3- or 4-inch voice coils
• DSP-controlled AutoEQ function with microphone for perfect room adjustment
• RCA LFE, RCA stereo, XLR LFE, XLR stereo and high-level inputs
• App control with 6-band EQ, subsonic filter, high-pass filter and presets

Specifications:

• Woofer 12″ high-performance driver, basket with three ventilation channels, carbon fiber cone, dual-spider
• Four-layer 4″/102mm voice coil
• Triple ferrite magnet system
• Housing HDF closed, reinforced construction
• Amplifier Class D 1200W RMS / 1700W Peak
• Frequency response
  ±10 dB: 15-280 Hz
  ±3 dB: 25-200 Hz
• Low-pass filter 30-200 Hz adjustable, 12/24/36/48 dB/octave
• Delay Adjustable 0-500 ms
• Inputs RCA Stereo / LFE
• XLR Stereo / LFE
• High level stereo
• Outputs RCA Stereo / LFE
• XLR Stereo / LFE
• Cover Black fabric grille, MDF frame
• Auto power-on Yes, sensitivity adjustable
• Power switch On / Auto / Trigger
• Voltage 115V – 230V
• Dimensions (WxHxD) 380 x 400 x 480 mm
• Weight 35 kg
• Shipping weight 40 kg
